Case Studies

With over two decades of combined experience and constant growth in the field of braking system, LBN has been providing high quality products and excellent service to a number of domestic and foreign automakers and vehicles companies. Our outstanding designing and manufacturing capabilities are particularly appreciated by our customers worldwide.

Shown here are some of custom brake parts we have made for our customers.

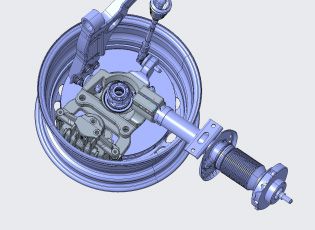

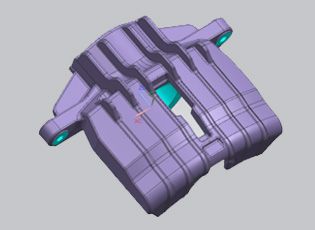

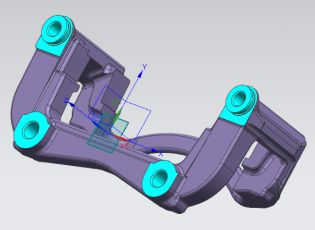

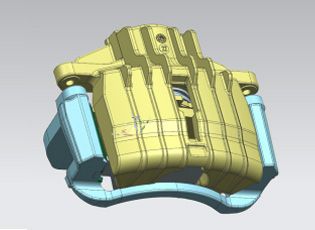

Case 1

In 2017, German customer purchased our 8739 series products.

  • Case Studies
  • Case Studies
  • Case Studies
  • Case Studies

Piston diameter: φ60
Thread: M10X1
Mounting hole spacing: 146
Suitable brake disc diameter: φ310
Material: brake caliper body ZL111, bracket QT500-7
Design: brake caliper body and bracket are independently designed according to customer’s requirements
Features: completely independent developing (including 3D modeling)

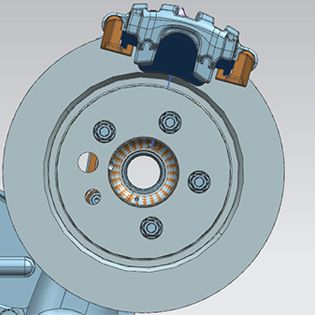

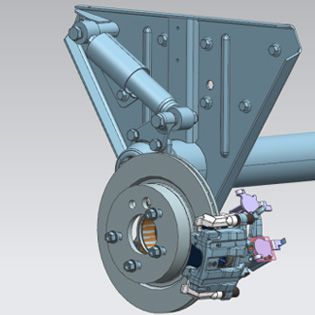

Case 2

In 2017, German customer purchased our 8738 series products.

  • Case Studies
  • Case Studies
  • Case Studies
  • Case Studies

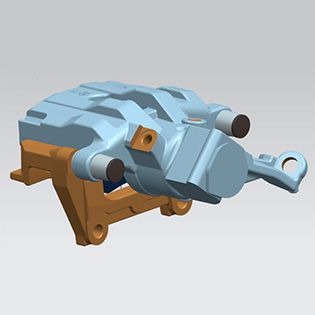

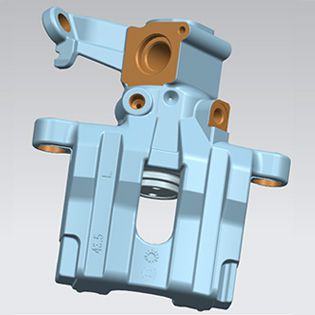

Rear brake caliper assembly – right & left
Reference: FNc 45/22/10
Applicable pressure: 0.5bar
Friction coefficient (C*) of rear axle: 0.80
Diameter of rear axle: 43.2mm
Material: ZL111 QT500-7
The internal structure adopts stable IPB structure, and the outer appearance is independently designed.

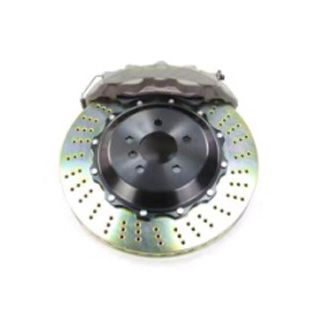

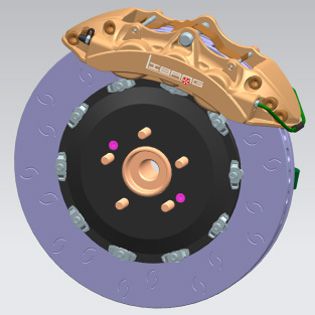

Case 3

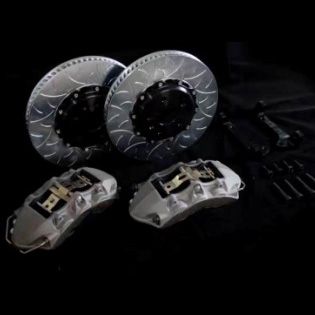

In 2012, 86xx series forged six-piston fixed caliper was custom manufactured for customer.

  • Case Studies
  • Case Studies
  • Case Studies

Piston diameter: φ30, φ34, φ38
Applicable brake disc diameter: 355mm-405mm
Net weight: 2.9Kg
Caliper material: 6082 aluminum alloy
Features: the internal structure adopts multi-piston balanced brake structure, enabling the brake caliper to be more safe and smooth in stopping performance. The outer appearance is independently designed.

Established in 1998, LBN designs and manufactures high-performance disc brake systems. So far, we have developed a selection of brake components that allow us to quickly create brake systems suitable for your vehicles, motorcycles, scooters and bicycles. Our team of experienced professionals helps you take advantage of their professional expertise in the field of auto parts, especially disc brake parts, to rapidly develop custom engineered automotive brake systems per your specific needs. All the brake system parts we offer must meet or exceed our strict guidelines. To achieve this, LBN has imported state of the art CNC machine tools from Germany and Japan to ensure the high quality of our braking components. As a specialist brake system manufacturer, we will provide you with vehicle braking system that you can rely on.
